DX52D/SGCD1 Galvanized Coil
The material of DX52D galvanized coil is a non-ferrous alloy composed of zinc as the matrix. The main alloying elements are aluminum, copper, magnesium and so on. Zinc alloy has low melting point, good fluidity, easy plastic processing and welding, and resistance to atmospheric corrosion.
Contact me via WhatsApp
Submit

DX52D/SGCD1 Galvanized Coil Description

DX52D galvanized coil is a galvanized steel material with a thin and uniform zinc layer on its surface. This zinc layer can effectively protect the steel coil from corrosion and oxidation. In addition, DX52D galvanized coil also has good processing performance and welding performance, and can meet various building processing and construction needs. DX52D galvanized coil can be used for various welding operations. Since there is a layer of galvanized layer on its surface, you need to pay attention to the protection of the galvanized layer during welding to avoid welding defects.


Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.



Product Parameters

Product Name

DX52D/SGCD1 Galvanized Coil

Thickness

0.12mm-3.5mm

Width

600mm-1500mm

Length

508mm/610mm, Support Customization

Standard

AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.

Zinc Layer

Hot Galvanizing: 60-275g/m²

Pre-galvanized: 80-275g/m²



Chemical Composition

Standard

Grade

C

Si

Mn

P

S

Ti

Forcold Forming

Chinese Standard

DX51D+Z

0.12

0.50

0.60

0.100

0.045

0.30

DX52D+Z

0.12

0.50

0.60

0.100

0.045

0.30

DX53D+Z

0.12

0.50

0.60

0.100

0.045

0.30

DX54D+Z

0.12

0.50

0.60

0.100

0.045

0.30

DX56D+Z

0.12

0.50

0.60

0.100

0.045

0.30

DX57D+Z

0.12

0.50

0.60

0.100

0.045

0.30

Forcold Forming

Japanese Standard

SGCC

0.15

0.50

0.80

0.050

0.030

0.025

SGCD1
SGCD2

0.12
0.10

0.50
0.50

0.60
0.45

0.040
0.030

0.030
0.030

0.025
0.025

SGCD3

0.08

0.50

0.45

0.030

0.030

0.025

SGCD4

0.06

0.50

0.45

0.030

0.030

0.025

For Structure

Japanese Standard

SGC340

0.25

0.50

1.70

0.200

0.035

0.025

SGC400
SGC440

0.25
0.25

0.50
0.50

1.70
2.00

0.200
0.200

0.035
0.035

0.150
0.150

SGC490

0.30

0.50

2.00

0.200

0.035

0.025

SGC510

0.30

0.50

2.50

0.200

0.035

0.025

For Structure

AISI Standard

S220GD+Z

0.20

0.60

0.70

0.100

0.045

0.025

S250GD+Z

0.20

0.60

0.70

0.100

0.045

0.025

S280GD+Z

0.20

0.60

0.70

0.100

0.045

0.025

S320GD+Z

0.20

0.60

0.70

0.100

0.045

0.025

S350GD+Z

0.20

0.60

0.70

0.100

0.045

0.150

S550GD+Z

0.20

0.60

0.70

0.100

0.045

0.150



Mechanical Properties

Grade

Yield Strength MPa≥

Tensile Strength MPa≥

Elongation A%≥

DX51D Z/ZM/AZ/AM

240-380

270-500

22

DX52D Z/ZM/AZ/AM

140-300

270-420

26

DX53D Z/ZM/AZ/AM

140-260

270-380

30

DX54D Z/ZM/AZ/AM

120-220

260-350

36

S220GD Z/ZM/AM

220

300

20

S250GD Z/ZM/AZ/AM

250

330

19

S280GD Z/ZM/AM

280

360

18

S300GD A/AM

300

380

18

S320GD Z/ZM/AM

320

390

17

S350GD Z/ZM/AZ/AM

350

420

16

S450GD A/AM

450

480

15

S550GD Z/ZM/AZ/AM

550

550

-

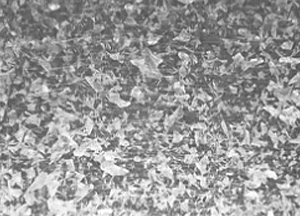

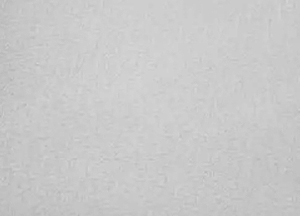

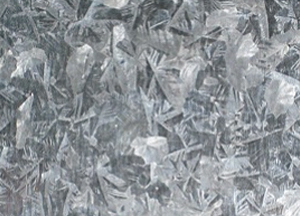

Galvanized Surface Selection

Zero Spangle

Minimized Spangle

Normal Spangle

Large Spangle



Use of The Environment

Recommended Zinc Thickness

Indoor Use

Z10 or Z12 (100g/㎡or 120g/㎡)

Suburbs

Z20 and Painting (200g/㎡)

Urban or Industrial Area

Z27 (270g/㎡) or G90 (US Standard) and painted

Coastal Area

Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted

Punch or Deep Drawing Application

Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping



Surface Treatment Type

Code

Features

Chromic Acid Treatment

C

Good corrosion resistance, suitable for bare state

Chromic Acid Treatment+Oiling

S

Good corrosion resistance

Phosphoric Acid Treatment (Including Sealing Treatment)

P

Have a certain corrosion resistance, good paint performance

Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling

Q

Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage

Phosphoric Acid Treatment (Excluding Sealing Treatment)

T

Have a certain corrosion resistance, good paint performance

Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling

V

Has a certain corrosion resistance, good paint performance, and prevent rust

Oiling

O

Prevent rust during transportation and storage

No Treatment

M

Suitable for immediate painting



Material Comparison

Chinese Standard

Japan Standard

European Standard

DX51D Z/DC51D Z (CR)

SGCC

DX51D Z

DX52D Z/DC52D Z

SGCD1

DX52D With

DX53D Z/DC53D Z/DX54D Z/DC54D Z

SGCD2/SGCD3

DX53D Z/DX54D Z

S220/250/280/320/350/550GD Z

SGC340/400/440/490/570

S220/250/280/320/350GD Z

DX51D Z/DD51D Z (HR)

SGHC

DX51D Z

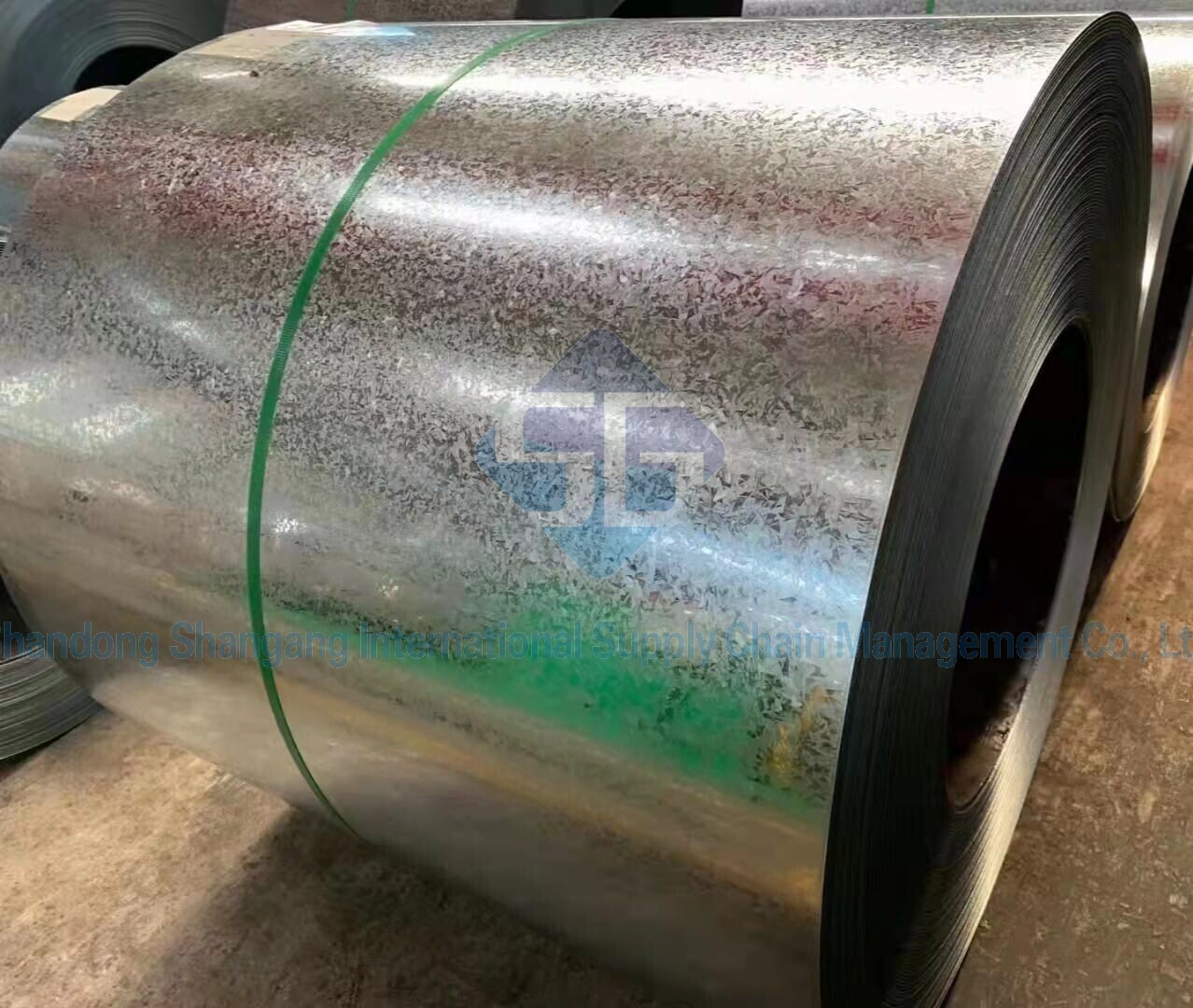

   Product Show

   Why Choose Us

1.7x24 hours online response

7x24 hours online response

Only to give you the best service

2.Punctual delivery

(1) We provide competitive price products on the basis of quality assurance and arrange delivery on time.

(2) We can process different finished products according to your requirements

(3) High production capacity will shorten your waiting time

(4) Accept buyer's specifications

(5) Experienced R&D department

   Certificates


    Our Factory

   Packaging&Shipping

   FAQ

Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer and offer a wide range of steel products.

Q: Do you provide samples?

A: Yes, we will provide samples for free, and the express shipping cost will be borne by customers.

Q: Can you customize the products according to our requirements?

A: Yes, just tell us your requirements, we can provide you with customized solutions, such as material, hardness, thickness, width and so on.

Q: Can I visit your factory?

A: Of course you can, we welcome customers from all over the world to visit our factory.

Q: Are the products quality inspected before shipment?

A: Of course, all our products undergo strict quality inspection before packing, and unqualified products will be destroyed. We absolutely accept third party inspection.
