DIN 17175 Seamless Steel Pipe
DIN 17175 is a standard specification for seamless tubes of heat-resistant steels used in elevated temperatures and high-pressure environments.
Contact me via WhatsApp
Submit

DIN 17175 Seamless Steel Pipe Description

DIN 17175 standard covers a range of materials called heat-resistant steels, which are specifically developed to  maintain their mechanical properties and structural integrity at  elevated temperatures. These materials include various alloy and  non-alloy steel grades, such as 15Mo3, 13CrMo44, 10CrMo910, and  others.DIN 17175 pipes  are intended for use in high-temperature and high-pressure  environments, such as in boilers, pipelines, and heat exchangers. The  standard outlines the requirements for dimensions, technical conditions,  and mechanical properties of these tubes, ensuring their suitability  and reliability in various industrial applications involving elevated  temperatures.


Product Parameters

Product Name

DIN 17175 Seamless Steel Pipe

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI etc.

Outer Diameter

Seamless: 1/4"-36"

Welding: 21.3mm-3620mm

Round Tube: 1/2"-10"

Square Tube/Rectangular Tube: 15x15mm-400x600mm

Wall Thickness

Seamless: 1.25mm-50mm

Welding: 1.65mm-65mm

Length

3-12 meters, Support customization

Surface Process

Bright, Polished, Black

Other Services

Machining(cnc),  Centerless Grinding(cg), Heat Treatment, Annealing, Pickling,  Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

DIN  17175

C

Si

Mn

P

S

Ni

Cr

Mo

Others

St35.8

0.17 Max

0.10-0.35

0.40-0.80

0.040 Max

0.040 Max

-

-

-

-

St45.8

0.21 Max

0.10-0.35

0.40-1.20

0.040 Max

0.040 Max

-

-

-

-

17Mn4

0.14-0.20

0.20-0.40

0.90-1.20

0.040 Max

0.040 Max

-

0.30 Max

-

-

19Mn5

0.17-0.22

0.30-0.60

1.00-1.30

0.040 Max

0.040 Max

-

0.30 Max

-

-

15Mo3

0.12-0.20

0.10-0.35

0.40-0.80

0.035 Max

0.035 Max

-

-

0.25-0.35

-

13CrMo910

0.10-0.18

0.10-0.35

0.40-0.70

0.035 Max

0.035 Max

-

0.70-1.10

0.45-0.65

-

10CrMo910

0.08-0.15

0.50 Max

0.40-0.70

0.035 Max

0.035 Max

-

2.00-2.50

0.90-1.20

-

14MoV63

0.10-0.18

0.10-0.35

0.40-0.70

0.035 Max

0.035 Max

-

0.30-0.60

0.50-0.70

V: 0.22-0.32

X20CrMoV121

0.17-0.23

0.50 Max

0.40-0.70

0.030 Max

0.030 Max

0.30-0.80

10.00-12.50

0.80-1.20

V: 0.25-0.35

Mechanical Properties

DIN  17175

Material No.

Minimum Yield Point MPa or N/mm2

Tensile Strength

WT: 16 mm Max

WT: 16-40 mm

St35.8

1.0305

235

225

360-480

St45.8

1.0405

-

245

410-530

17Mn4

1.0481

-

275

460-580

19Mn5

1.0482

-

315

510-610

15Mo3

1.5415

275

275

450-600

13CrMo910

1.7335

295

295

440-590

10CrMo910

1.7380

285

285

450-600

14MoV63

1.7715

325

325

460-610

X20CrMoV121

1.4922

490

490

690-850

Scope of Application

DIN 17175 alloy steel pipe adopts  heat-resistant pipe, which is suitable for high-pressure environment  below 600 ℃. The application scope includes the construction of boilers,  pipelines, pressure vessels and equipment.

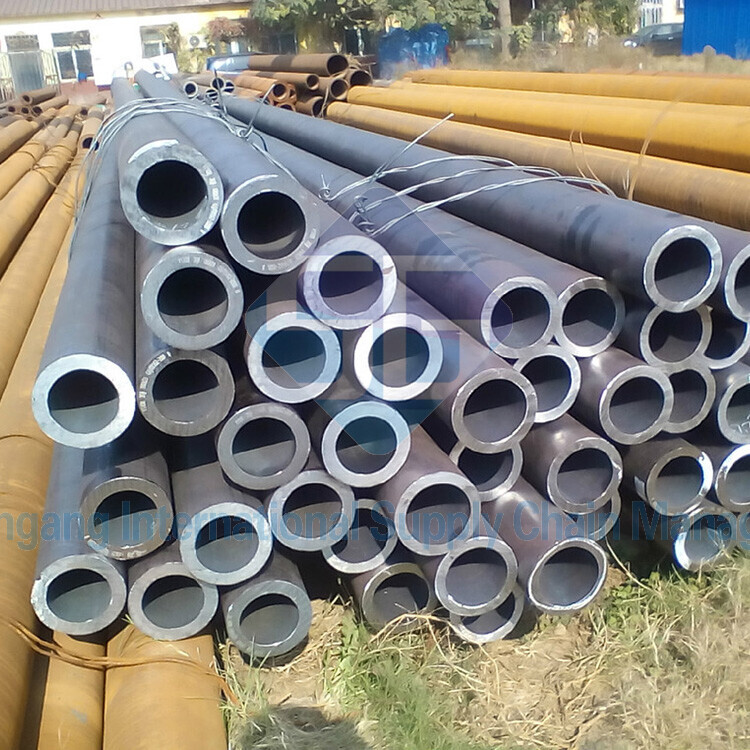

   Product Show
